Baumit in Bad Ischl (AT) operates now with dosing machine and storage silo
19.11.2014 | News

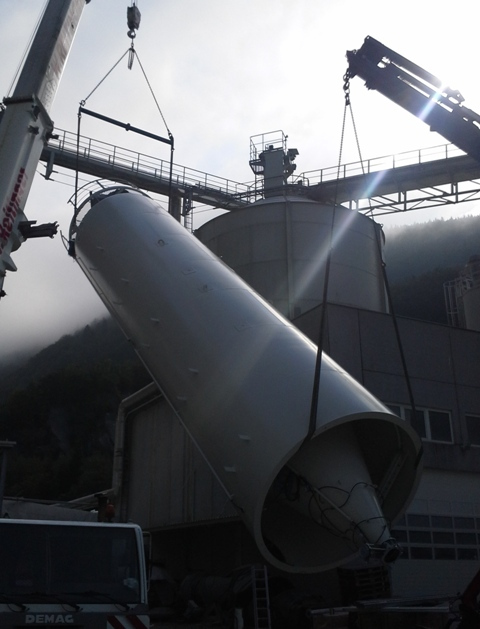

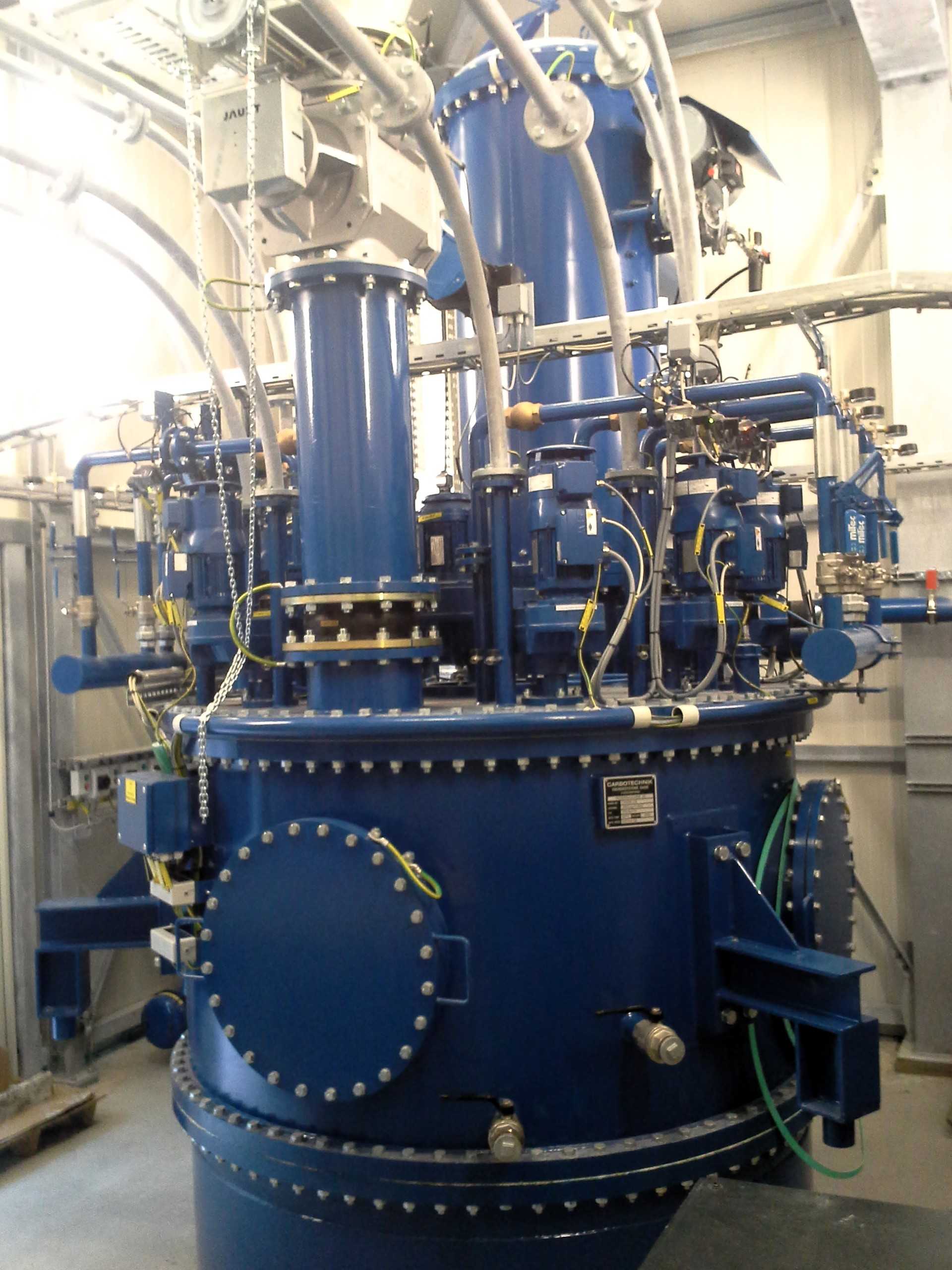

Dosing machine with conveyor system and storage silo at Baumit Bad Ischl
Dosing machine with conveyor system and storage silo – completed at Baumit Baustoffe GmbH in A-4820 Bad Ischl
Baumit is the market leader in plaster and lime products in Austria and ranks third in Europe. At the Bad Ischl site, a ring-chamber kiln is operated for burning lime, which is to be retrofitted for the use of petroleum coke and lignite dust.
To this end, Carbotechnik supplied and installed a complete system comprising a 120 m³ silo, a dosing machine, and a conveying air duct leading to the connection with the 8 combustion chambers of the ring-chamber kiln. Each conveying line has a control range of 1:8 while maintaining consistent dosing accuracy.
| Quantit | 1 |
| Brief description | 120 m³ silo, DN 2000 dosing machine, and feed lines for a lime shaft kiln |
| Conveying capacity kg/h | 8 dosing units, each with a capacity of 30 to 250 kg/h |
| Material conveyed | lignite dust and petroleum coke dust |
